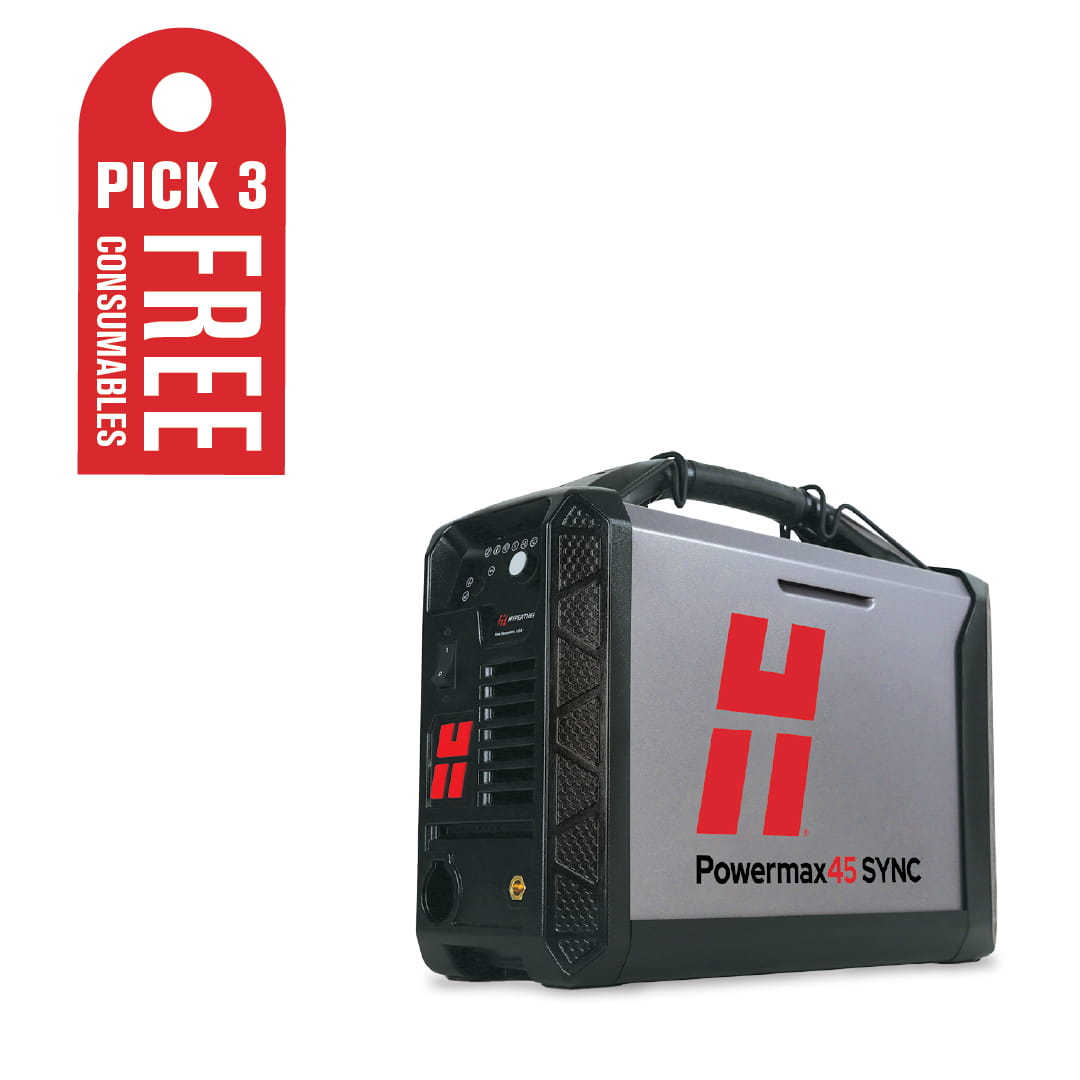

Hypertherm Powermax45 SYNC (088562) Plasma Cutting Hand System, with 25ft 75° hand torch and CPC port

Powermax45 SYNC CSA HS 230V, with CPC Port, 75° hand torch and a 20ft lead

0 Review(s) Write a Review

$3,125.00

Questions about this item? Be the first to ask here.

Part Number: 088562

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Product Features
Applications

The Powermax45 SYNC offers the best return on investment!

As a new member of the Hypertherm Powermax lineup, the Powermax45 SYNC is equipped with advanced built-in intelligence, a patented single-piece cartridge, and provides up to five times longer consumable life and superior cutting power compared to higher-amperage competitors! For metal workers who want the most versatile system available to gouge, cut, and mark.

As of June 4th, 2024 the Powermax45 SYNC System is now available for pre-order!

Please note, shipping is available to US customers only.

Easy to use

A patented single-piece cartridge eliminates operator error and simplifies operations
Advanced torch communication for automated setup improves cut quality
Easy to set up for mechanized usage with optional CNC interface and FastConnect™ torch connection

Versatile

Gain greater cutting power than higher-amperage competitors
Expand application capabilities with a wide variety of specialty cartridges and torches
Cut and mark using the same FineCut® cartridge

Industry Leading Reliability

SmartSYNC® torches are engineered for rugged industrial environments
Powermax plasma cutters are known to last decades in the field, minimizing maintenance and downtime
Each Powermax component is tested to perform reliably in demanding conditions

Specifications	Powermax45 SYNC®
Input voltages	200-240 V, 1-PH, 50/60 Hz 480 V. 3-PH, 50-60 Hz1
Kilowatt output	6.9 kW
Input current	200-240 V, 1-PH 39/32 A @ 6.5 kW
Output current	9-45 A
Rated output voltage	155 VDC
Duty cycle @ 104° F (40° C)	50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH
Open circuit voltage (OCV)	275 VDC 200-240 V 275 VDC 480 V
Dimensions with handles	17.4" D ; 6.8" W ; 14.1" H
Weight w/25' torch	31 lbs
Gas supply	Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure	188 I/min @ 5.9 bar (400 scfh @ 85 psi)
Input power cable length	10 ft
Power supply type	Inverter - IGBT
Engine drive requirement	10 kW for full 45 A output
Certifications	CSA-certified for use in the Americas and Asia, except China
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty
